JD RJ45 E100

SPD according to EN 61643-11 / IEC 61643-11

Typ 2 / Class II

Nominal voltage U_N

5 V

Maximum continuous operating voltage U_C

6 V

Nominal discharge current 8/20 μs I_n

1.5 kA

Maximum discharge current 8/20 μs I_max

2.5 kA

Voltage protection level L-S U_P

1.5 kV

Voltage protection level L-L U_P

50 V

Voltage protection level L-PE U_P

500 V

Insertion loss

≤ 0.5 dB (50 MHz)

Impedance

100 Ω

Response time

< 1 ns

Transfer rate

100 Mbit/s

Temperature

-40 °C ... +80 °C

Connection

RJ45

Degree of protection

IP 20

Housing material

metal

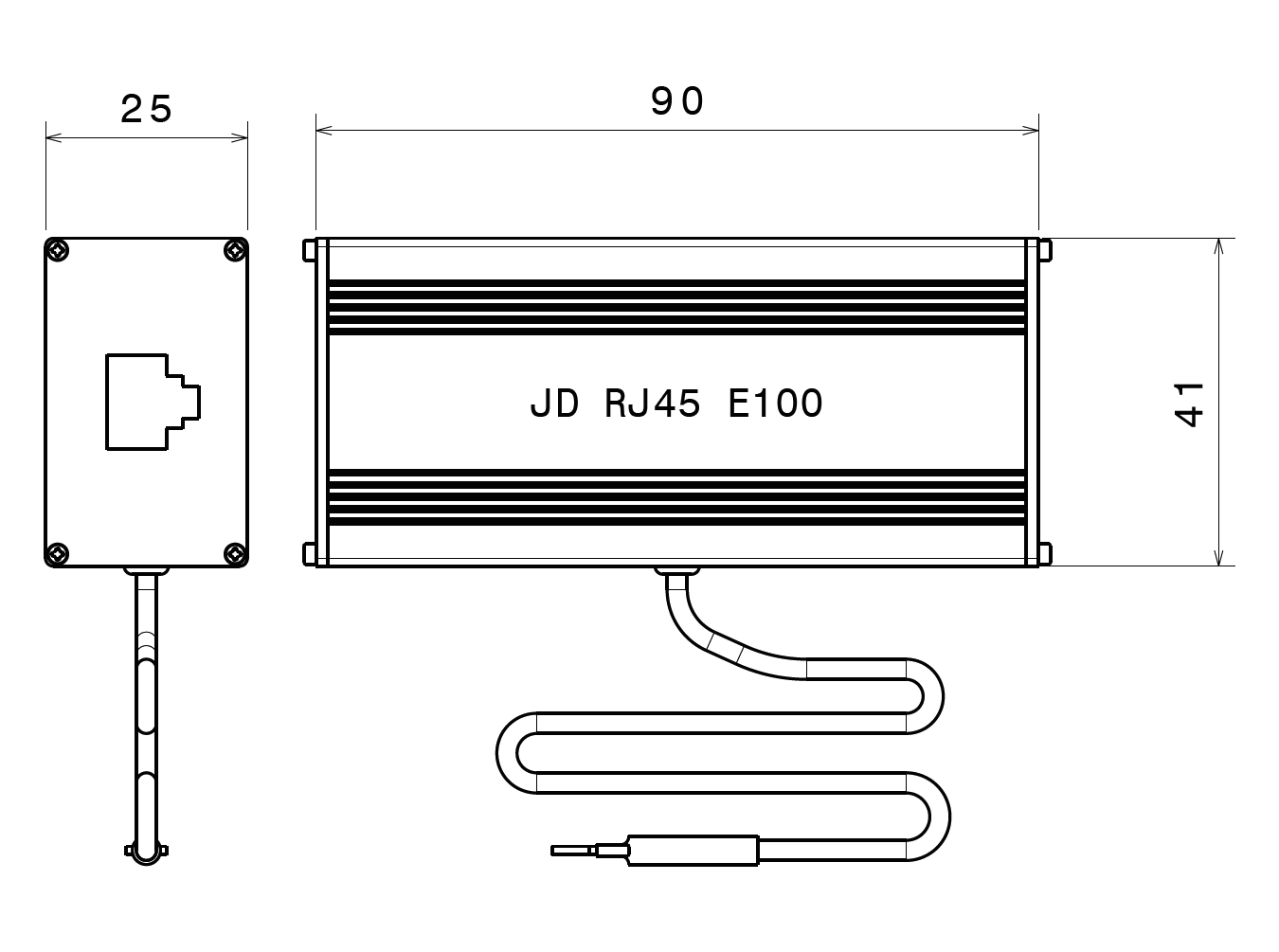

Dimensions W | H | D in mm

25 | 41 | 90
