JD BNC
|
|
SPD
according to EN 61643-11 / IEC 61643-11
|
Typ 2 / Class II
|
|
Nominal voltage UN
|
5 V
|
|
Maximum continuous operating
voltage UC
|
6 V
|
|
Nominal
discharge current 8/20 μs In
|
5 kA
|
|
Maximum
discharge current 8/20 μs Imax
|
10 kA
|
|
Voltage
protection level L-S UP
|
25 V
|
|
Voltage
protection level L-L UP
|
|
|
Voltage protection level L-PE UP
|
500 V
|
|
|
|
|
Insertion loss
|
≤ 0.35 dB
|
|
Impedance
|
75 Ω
|
|
Response time
|
|
|
Transfer rate
|
|
|
Temperature
|
-40 °C ... +80 °C
|
|
Connection
|
BNC
|
|
Degree of
protection
|
IP 20
|
|
|
|
|
Housing material
|
metal
|
|

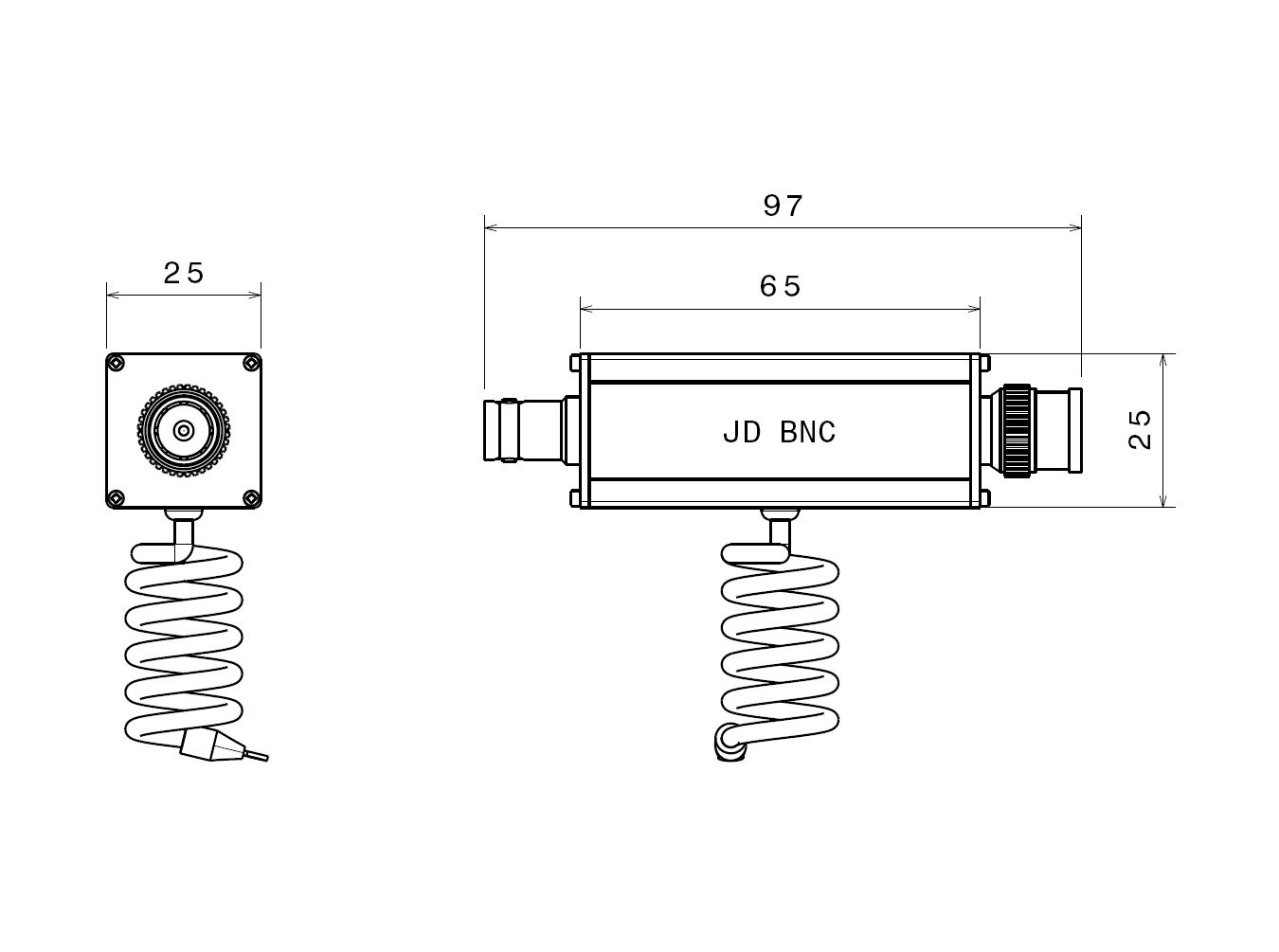

Dimensions W | H | D in mm
|
25 | 25 | 97
|
|
|
|
